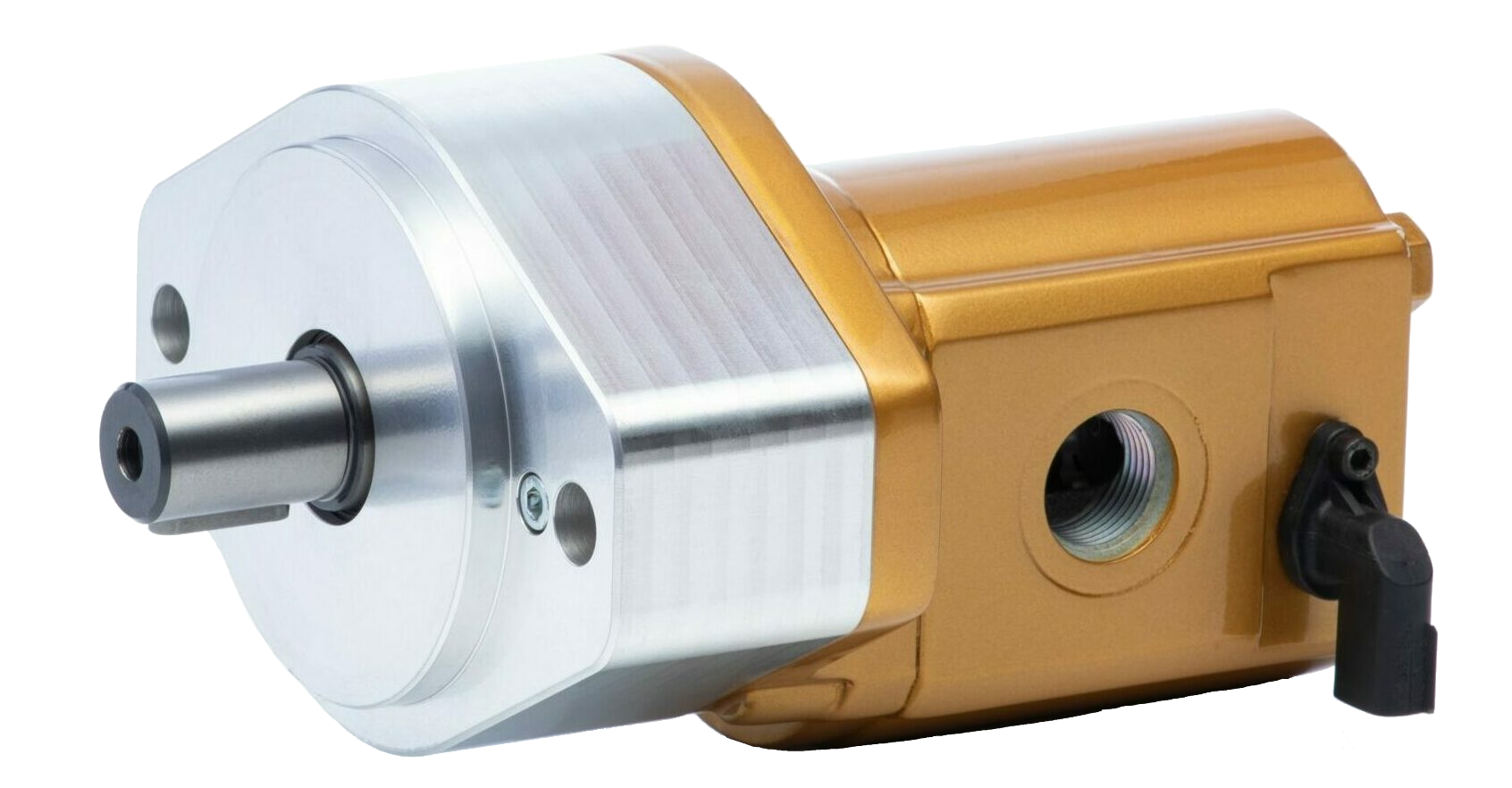

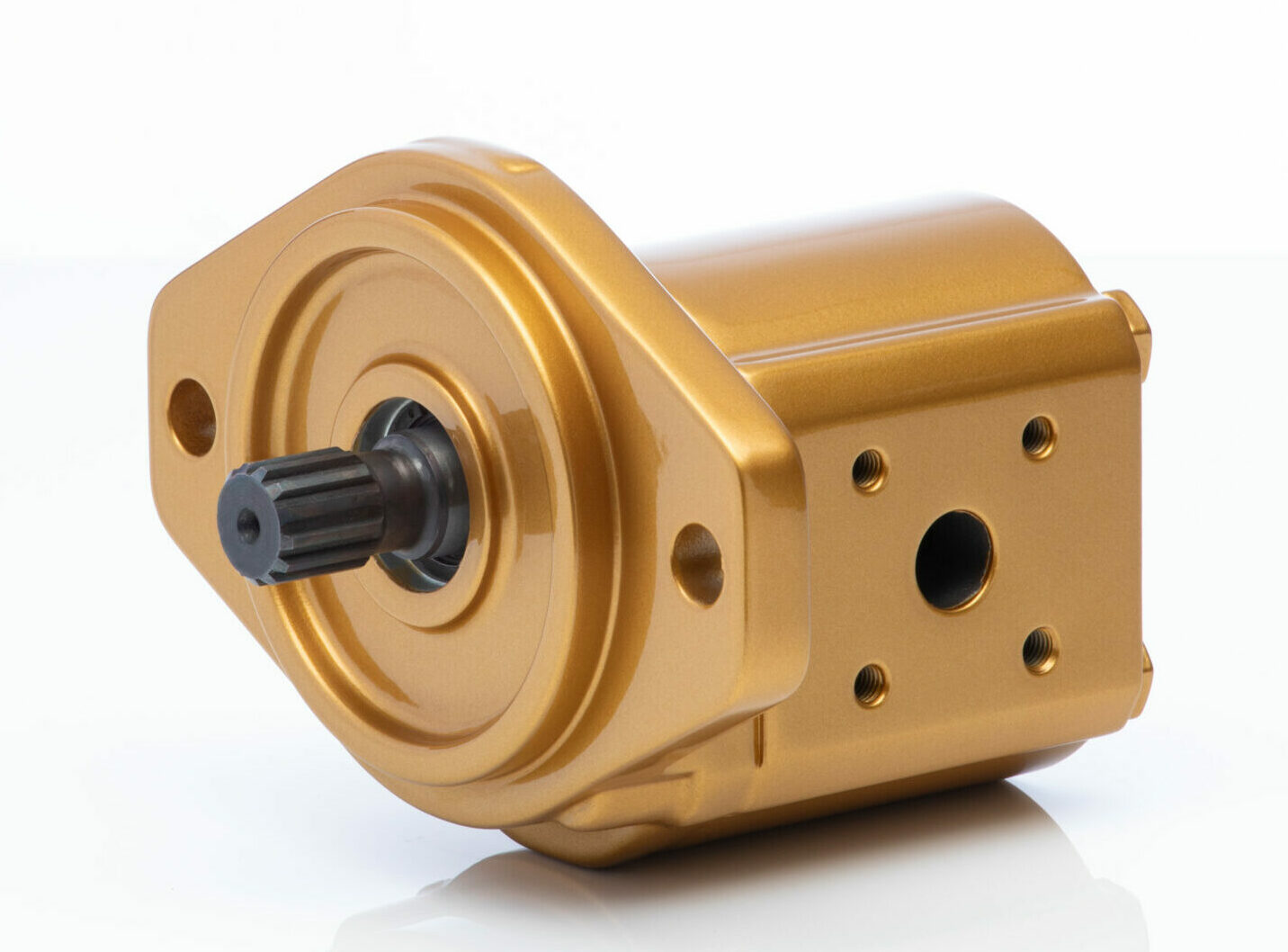

FM12 – Motor Group 2.5 – Power Density
- High-Performance external gear motor for heavy-duty-application
- High power density (group 3 performance @ group 2 size)
- Compact and robust 2-piece design
- Uni- or birotational configuration available
- Cast iron body (Cr6-free surface protection)
- Noise optimized
- SAE-A and B interfaces available
- Reinforced front bearings (SAE-B) available
- Customized options on demand
- Displacement: 16 – 41 cm³/rev (0.976 – 2.502 in³/rev)
- Max. rated pressure: 276 bar (4000 PSI)
- Speed range: 500 to 3000 RPM
- Max. output torque: 121 Nm (1072 In-Lbs)
| Displacement (in³/rev) / (cm³/rev – for reference) | Rated differential pressure Δp (PSI) | Maximum output torque (In-Lbs) @ rated Δp | Maximum speed (RPM) | Minimum speed (RPM) |
|---|---|---|---|---|
| .976 / (16.0 cm³/rev) | 4000 | 572 | 3000 | 500 |
| 1.159 / (19.0 cm³/rev) | 4000 | 679 | 3000 | 500 |
| 1.404 / (23.0 cm³/rev) | 4000 | 822 | 3000 | 500 |
| 1.648 / (27.0 cm³/rev) | 4000 | 965 | 3000 | 500 |
| 1.831 / (30.0 cm³/rev) | 4000 | 1072 | 3000 | 500 |
| 2.014 / (33.0 cm³/rev) | 3600 | 1068 | 2800 | 500 |
| 2.136 / (35.0 cm³/rev) | 3250 | 1020 | 2600 | 500 |
| 2.502 / (41.0 cm³/rev) | 2600 | 955 | 2300 | 500 |
| Displacement (cm³/rev) | Rated differential pressure Δp (bar) | Maximum output torque (Nm) @ rated Δp | Maximum speed (RPM) | Minimum speed (RPM) |
|---|---|---|---|---|
| 16,0 | 276 | 65 | 3000 | 500 |
| 19,0 | 276 | 77 | 3000 | 500 |
| 23,0 | 276 | 93 | 3000 | 500 |
| 27,0 | 276 | 109 | 3000 | 500 |
| 30,0 | 276 | 121 | 3000 | 500 |
| 33,0 | 250 | 121 | 2800 | 500 |
| 35,0 | 225 | 115 | 2600 | 500 |
| 41,0 | 180 | 108 | 2300 | 500 |
Product Features
-
Valve Integration
Valve Integration – W-Series and F12-SeriesConcentric offers a wide range of integrated valve solutions for gear pumps and motors..Examples:Anti-cavitation check valves(Proportional) pressure relief valvesValve manifolds for multiple functions.Also speed sensors can be integrated.
-

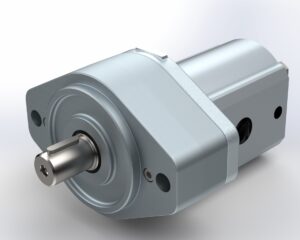

Reinforced Front Bearing

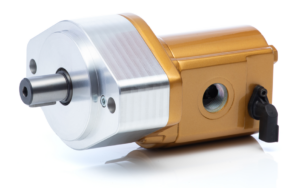

Reinforced Front Bearing – F12-SeriesConcentric offers reinforced front bearings (with SAE-B interface) for extended radial and axial drive shaft load capabilities..Max. radial load: 4700 NMax. axial load: 1300 N.Examples:Fan drivesBelt drives
