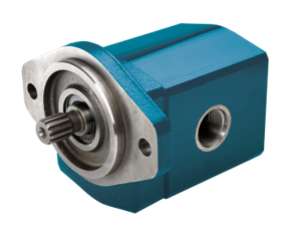

FM15 Ferra Motors
The F15 Ferra motor from Concentric is developed especially for targeted applications with the construction equipment, material handling and agricultural markets for the mobile off-highway industry.
The rugged compact 2-piece design housing together with state of the art gear geometry enables this motor to work at high pressures with reduced pressure pulsation and low noise operation.
Displacement
19 – 50cc
Max. Pressure:
276 bar (4,000 psi)
Max. Speed
3,600 rpm
Product Configurator
Streamline your design process with our innovative product configurator.
Configure your productProduct Overview
| Displacement (in³/rev) / (cm³/rev – for reference) | Rated differential pressure Δp (PSI) | Maximum output torque (In-Lbs) @ rated Δp | Maximum speed (RPM) | Minimum speed (RPM) |
|---|---|---|---|---|
| 1.159 / (19.0 cm³/rev) | 4000 | 679 | 3600 | 500 |
| 1.404 / (23.0 cm³/rev) | 4000 | 822 | 3600 | 500 |
| 1.709 / (28.0 cm³/rev) | 4000 | 1001 | 3600 | 500 |
| 2.014 / (33.0 cm³/rev) | 4000 | 1179 | 3600 | 500 |
| 2.319 / (38.0 cm³/rev) | 4000 | 1358 | 3100 | 500 |
| 2.685 / (44.0 cm³/rev) | 3200 | 1259 | 3100 | 500 |
| 3.051 / (50.0 cm³/rev) | 2900 | 1295 | 3000 | 500 |
| Displacement (cm³/rev) | Rated differential pressure Δp (bar) | Maximum output torque (Nm) @ rated Δp | Maximum speed (RPM) | Minimum speed (RPM) |
|---|---|---|---|---|
| 19,0 | 276 | 77 | 3600 | 500 |
| 23,0 | 276 | 93 | 3600 | 500 |
| 28,0 | 276 | 113 | 3600 | 500 |
| 33,0 | 276 | 133 | 3600 | 500 |
| 38,0 | 276 | 153 | 3100 | 500 |
| 44,0 | 221 | 142 | 3100 | 500 |
| 50,0 | 200 | 146 | 3000 | 500 |
