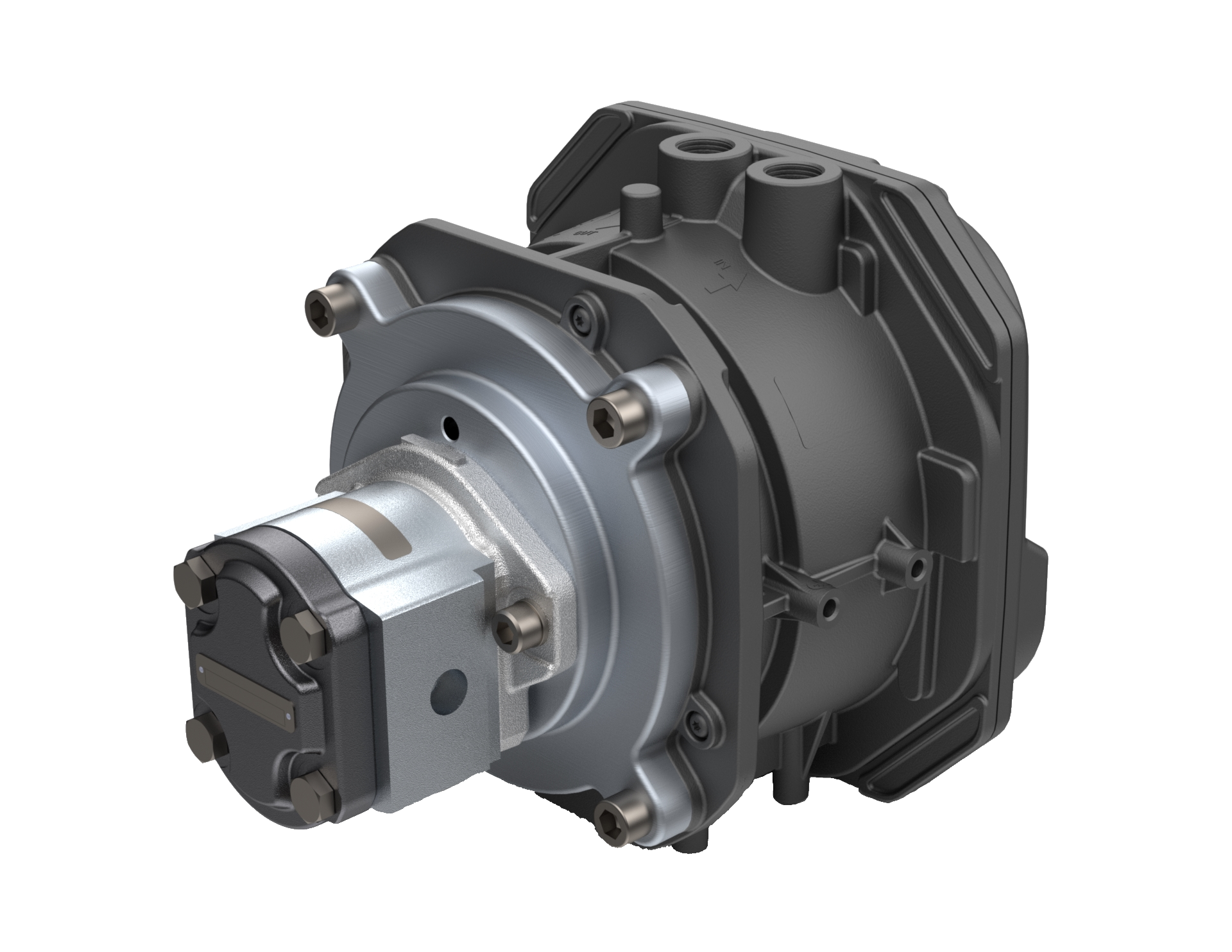

High Voltage Motor Pump Unit
Concentric’s new HVMPU (HIGH VOLTAGE MOTOR PUMP UNIT)
offers entry into the world of high voltage hydraulic units.
Due to its voltage range of 600-850 V the unit can directly be operated on the high-voltage board network of a vehicle.
With a nominal motor output power of 7.5 kW with full variability CAN controlled speed range of 0-4000 rpm, the unit provides sufficient output power for a large number of hydraulic applications.
Together with the proven external gear pumps of the CALMA series, and the new internal gear pumps of the IGP series, the unit has been optimized for low noise applications.
| 150-470/450-820 VDC operational high voltage range (2 variants) |
| Variable speed 0 – 4000 rpm |
| 20 Nm nominal torque up to 3500 rpm |
| 35 Nm maximum torque |
| Maximum output power 7,3 kW |
| Maximum efficiency of over 90% |
| Liquid cooling – compact and low weight |
| Designed for low noise applications |
| Designed for tough environmental conditions |
| UN/ECE- R10 Ready |
| Diagnostic via CAN/ J1939/UDS (optional) |
| 50 000 hours operational life length |
