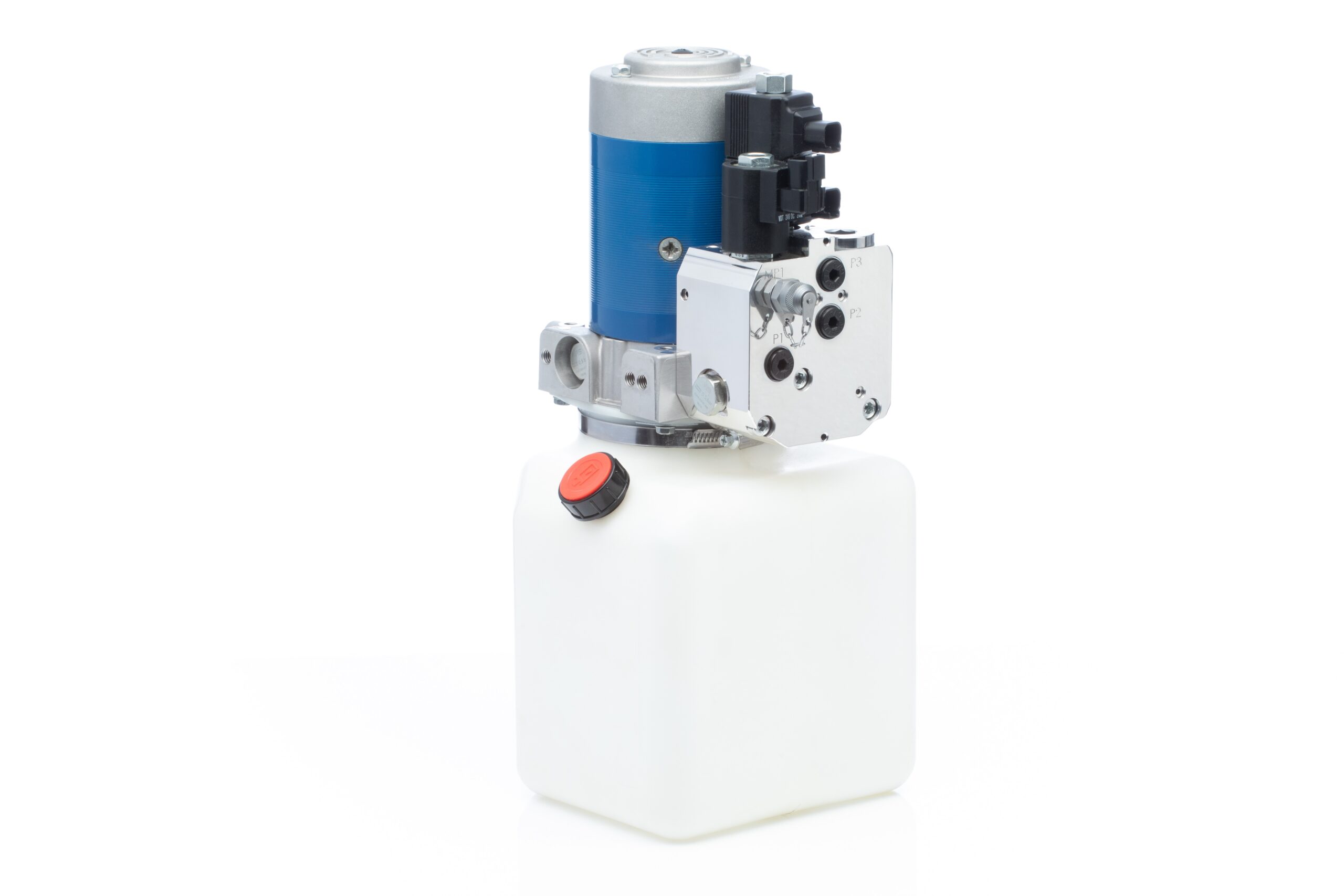

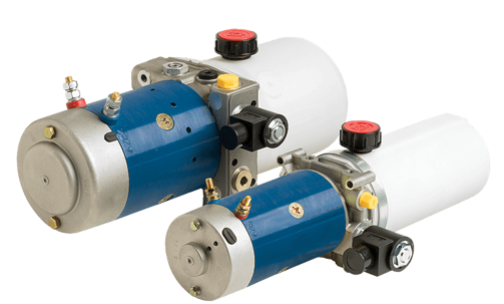

Power Packs – He1000 / He2000
The HE series power packs allows you to choose from a wide range of standard components to design a power system to meet the exact specifications of the application. With this design flexibility you cover a high variety of configurations with minimum inventory for maximum cost efficiency. The HE series is designed for both vertical and horizontal installation with a full range of valving, motor, pump and reservoir combinations.
Other advantages of the HE power packs include low power consumption, quiet operation and proven field performance.
Note: European AC motor adapters available.
Product Configurator
Streamline your design process with our innovative product configurator.
Configure your product| Displacement | 0.8 – 5.7 ccm/rev |
| Max. Pressure | 4,640 psi |
| Voltage Range | 12-48 VDC • 115 – 460 VAC |
| Steel Reservoirs | 1 qt – 4.0 gal |
| Plastic Reservoirs | 1 qt – 1/2 gal |
| Displacement | 0.8 – 5.7 ccm/rev |
| Max. Pressure | 320 bar |
| Voltage Range | 12-48 VDC • 115 – 460 VAC |
| Steel Reservoirs | 1 – 15.2 ltr |
| Plastic Reservoirs | 1 – 15.2 ltr |
