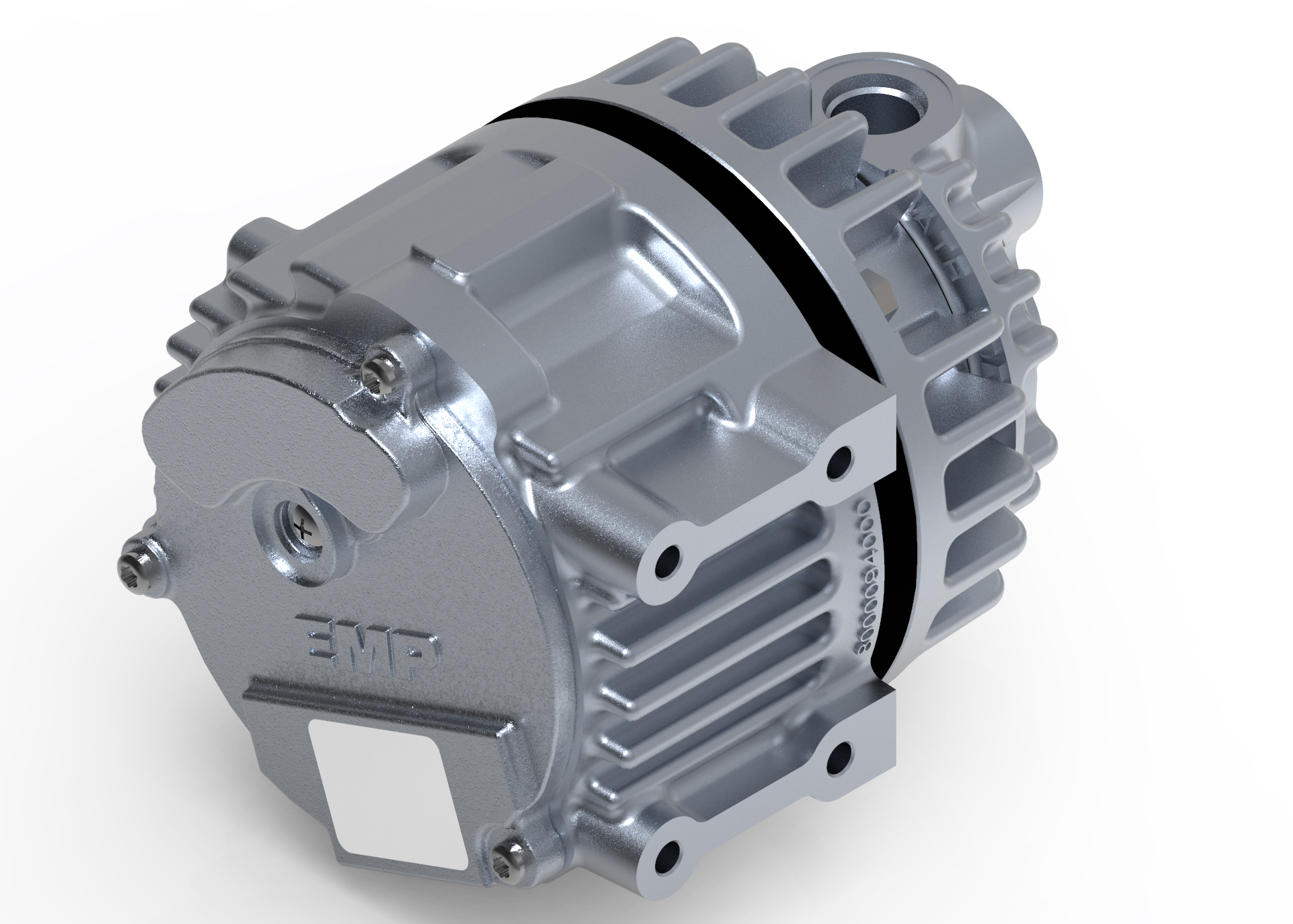

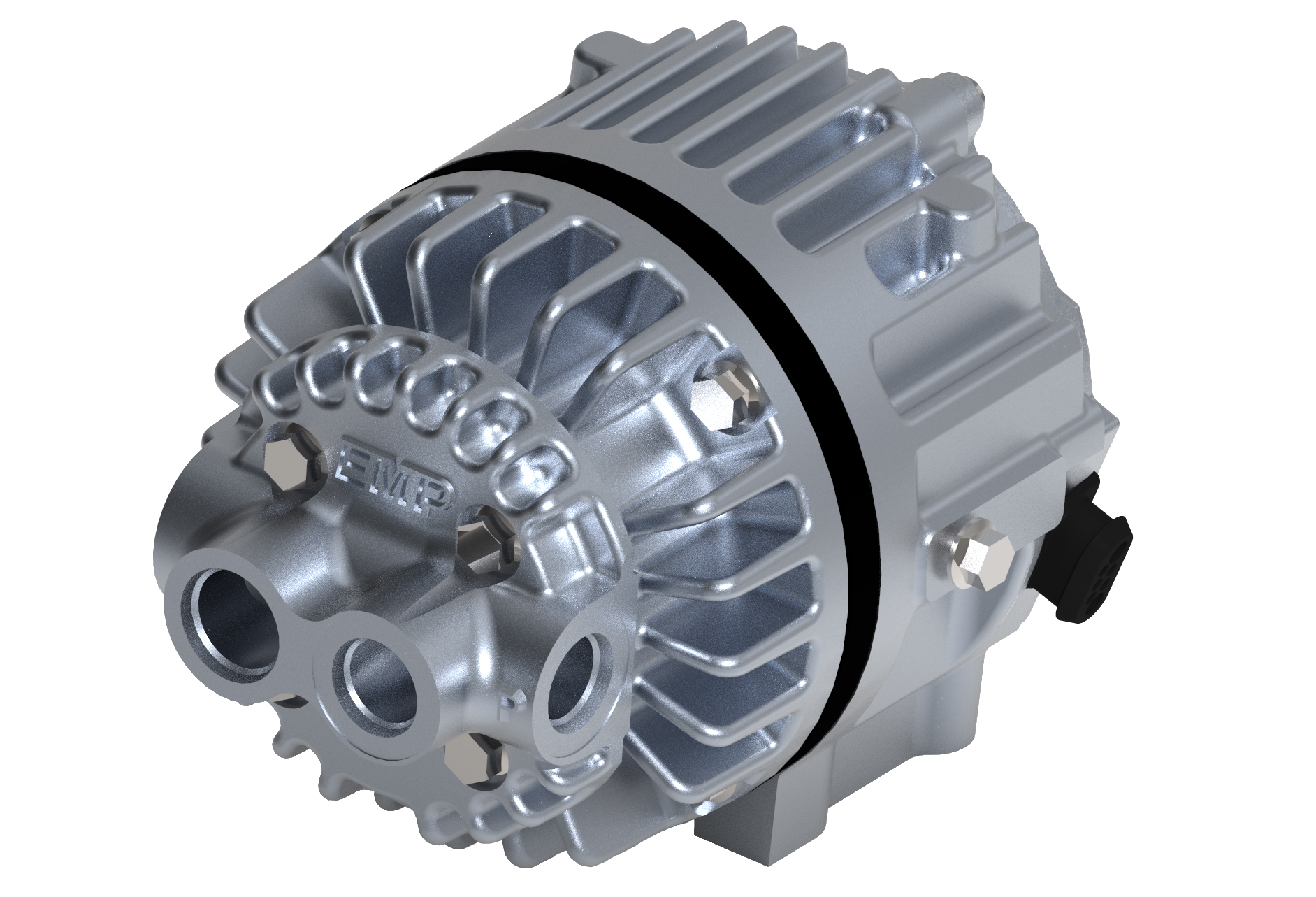

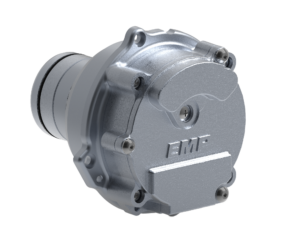

Smart Flow® Single Stage Oil Pump

The OP40 and OP80 single-stage electric oil pumps are positive displacement gear pumps featuring a brushless DC motor and integrated motor drive controller. With a flow capacities up to 8 gal/min and operating pressures up to 100 psi it can handle a variety of fluid transfer applications including those for use with motor oil, hydraulic fluid, transmission fluids and gear lubes.

View product specification

Type	OP40	OP80
Construction	Cast Aluminum	Cast Aluminum
Dimensions	7.0″ x 5.5″ x 5.5″	7.0″ x 5.5″ x 5.5″
Weight	9.5 lbs	9.5 lbs
Maximum Current	25 Amps	25 Amps
Flow Capacity	Up to 4.0 gal/min	Up to 8.0 gal/min
Maximum Pressure	Up to 100 psi	Up to 80psi
Operating Fluid Temperature	32° to 212° F (Sub-zero operation is application dependent)	32° to 212° F (Sub-zero operation is application dependent)
Operating Ambient Temperature	-40° to 203° F	-40° to 203° F
Storage Temperature	-58° F to 257° F	-58° F to 257° F
Rated Voltage	9-16 VDC 18-32 VDC	9-16 VDC 18-32 VDC
Control Options	On/Off PWM CAN J1939	On/Off PWM CAN J1939

Type	OP40	OP80
Construction	Cast Aluminum	Cast Aluminum
Dimensions	177.8mm x 139.7mm x 139.7mm	177.8mm x 139.7mm x 139.7mm
Weight	4.3 kg	4.3 kg
Maximum Current	25 Amps	25 Amps
Flow Capacity	Up to 15 lpm	Up to 30 lpm
Maximum Pressure	Up to 690 kPa	Up to 550 kPa
Operating Fluid Temperature	0° to 100° C (Sub-zero operation is application dependent)	0° to 100° C (Sub-zero operation is application dependent)
Operating Ambient Temperature	-40° to 95° C	-40° to 95° C
Storage Temperature	-50° to 125° C	-50° to 125° C
Rated Voltage	9-16 VDC 18-32 VDC	9-16 VDC 18-32 VDC
Control Options	On/Off PWM CAN J1939	On/Off PWM CAN J1939

Product Features

Brushless DC Motor & Drive Controller
Available with 12 VDC and 24 VDC electric motors. Brushless, permanent magnet motors are combined with EMP designed motor control electronics to provide a smart, high efficiency, long life pump. Brushless motors have no contacting parts to wear and reduce life. Features include protections against…
- Locked rotor
- Over temperature
- Over current
- Over voltage
- Reverse battery
High Power Density

OP series offers best-in-class performance for flow capacity and operating pressure. Efficient mechanical design along with proprietary software allows sub-zero cold start capability.
Fully Controllable or Single Speed

EMP pumps can be run at any speed between the programmed minimum and maximum speed to minimize power consumption and noise. Variable speed can be achieved through CAN speed command or PWM input. In the absence of CAN speed command or PWM signal the pump will run a preprogrammed default speed and operate in an on/off manner.
Positive Displacement Design

EMP pumps feature positive displacement gerotor type pumping elements, allowing for simpler, quieter, more compact pump design while improving performance and minimizing power loss.
Self-Priming

EMP pumps are all 100% flow tested and incorporate internal geometry features to ensure the pump will remain wet for improved priming capability.
Sealed and Fully Submersible

EMP pumps are sealed and fully submersible for long life operation when exposed to the outside environment and its elements. The pumps are designed and have been validated to withstand submersion and direct spray pressure wash.
Multiple Port Configuration

Oil pump heads have two sets of suction and discharge ports to offer flexible integration.
Service Tool
EMP pumps can be controlled manually using EMPower Connect™ Service Tool. The software on these pumps can be easily changed or updated in the field using this tool. History data can be downloaded, which includes…
- Hours of operation
- Temperature data
- Voltage data
- Calibration information
- Diagnostic fault codes
- Performance data
Variety of Applications
The OP series can be utilized in a variety of functions, customized to the needs of our customers.
- General oil transfer
- Lubrication
- Cooling
- Oil scavenging
- Oil change
- By-pass filtration
