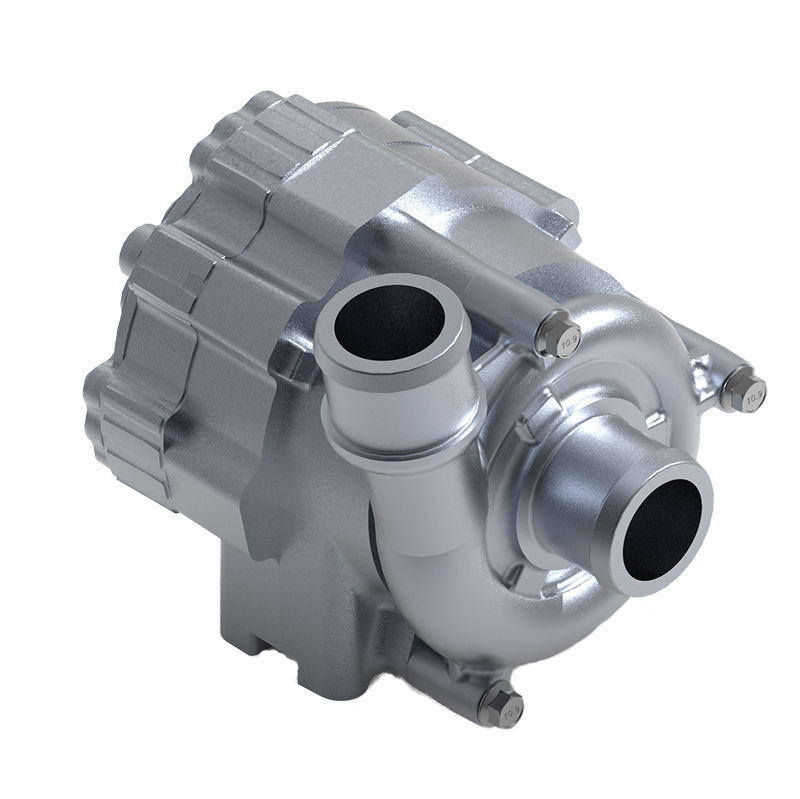

Smart Flow® WP150

The Smart Flow® WP150 is a high performance, long life, severe duty electric water pump used in cooling systems in extreme environments. It can be used in off road applications, power generation, and large vehicle applications including fuel cell, diesel, electric, and other alternative fuel applications.

View product specification

Type	12V	24V	48V
Flow and Pressure	45 gpm @ 20 psi	45 gpm @ 20 psi	45 gpm @ 20 psi
Overall Package Weight	15.5 lbs	15.5 lbs	15.5 lbs
Sealing Rating	IP6K9K	IP6K9K	IP6K9K
Rated Voltage	9 – 18 VDC	18 – 32 VDC	36 – 56 VDC
Operating Temperature	-40° to 203° F	-40° to 203° F	-40° to 203° F
Storage Temperature	-40° to 257° F	-40° to 257° F	-40° to 257° F
Max Current	65 Amps	65 Amps	40 Amps
Pump Speed Minimum	500 RPM	500 RPM	500 RPM
Pump Speed Maximum	4350 RPM	4350 RPM	4350 RPM
Hose Connections	2 in	2 in	2 in
Control Inputs	On/Off Temp Sensor CAN J1939	On/Off Temp Sensor CAN J1939	On/Off Temp Sensor CAN J1939
Controller Temperature Range	-40° to 203° F	-40° to 203° F	-40° to 203° F

Type	12V	24V	48V
Flow and Pressure	170 lpm @ 140 kpa	170 lpm @ 140 kpa	170 lpm @ 140 kpa
Overall Package Weight	7 kg	7 kg	7 kg
Sealing Rating	IP6K9K	IP6K9K	IP6K9K
Rating Voltage	9 – 18 VDC	18 – 32 VDC	36 – 56 VDC
Operating Temperature	-40° to 95° C	-40° to 95° C	-40° to 95° C
Storage Temperature	-40° to 125° C	-40° to 125° C	-40° to 125° C
Max Current	65 Amps	65 Amps	40 Amps
Pump Speed Minimum	500 RPM	500 RPM	500 RPM
Pump Speed Maximum	4350 RPM	4350 RPM	4350 RPM
Hose Connections	50.8 mm	50.8 mm	50.8 mm
Control Inputs	On/Off Temp Sensor CAN J1939	On/Off Temp Sensor CAN J1939	On/Off Temp Sensor CAN J1939
Controller Temperature Range	-40° to 95° C	-40° to 95° C	-40° to 95° C

Product Features

Advanced Diagnostics

Intelligent diagnostics help the user understand how the pump and the entire system is operating. The diagnostics can be communicated through SAE J1939 CAN for real time analysis, or diagnostic data can be downloaded using EMPowerConnect service tool and sent to EMP for analysis. This is especially useful for troubleshooting or system development, and dry run detection.
Brushless Motor & Controller
Brushless permanent magnet motors are combined with EMP designed motor control electronics to provide a high-efficiency long life fan. Brushless motors have no contacting parts to wear and reduce life. The WP120 has motors available in 12V and 24V options.

Our controller features include protections against…
- Locked rotors
- Over temperature
- Over current
- Over voltage
- Reverse battery
Custom Communication Options
Our SmartFlow technology allows our line of components to communicate in a variety of styles to meet customer needs.
- J1939 CAN
- On/Off
- Contact us about control customizations
Sealed and Fully Submersible

EMP pumps are sealed and fully submersible for long life operation when exposed to the elements. Pumps are validated to withstand submersion and direct pressure wash.
Temperature Inputs

EMP electric water pumps have the ability to read external temperature sensors and control speed based on this input. They are also able to broadcast temperatures to the vehicle via SAE J1939 CAN.
High Efficiency, Compact, Quiet

The motor, electronics, and fluid design have been optimized for high efficiency. The end result is the highest possible flow and pressure for a given amount of input power. The design is also packaged to have as small a footprint as possible for the given pump performance and minimize sound output.
Validated in Severe Conditions

EMP water pumps are validated to withstand all field conditions including thermal cycles, salt spray, pressure wash, thermal shock, vibration and shock, electrical transients, ESD, reverse battery and more.
Available Service Tool

EMP pumps can be controlled manually using EMPower Connect™ Service Tool. The software in the pumps can be changed or upgraded in the field using this tool. History data can be downloaded and includes hours of operation, temperature data, voltage data, calibration information, histogram data, and diagnostic fault codes.
