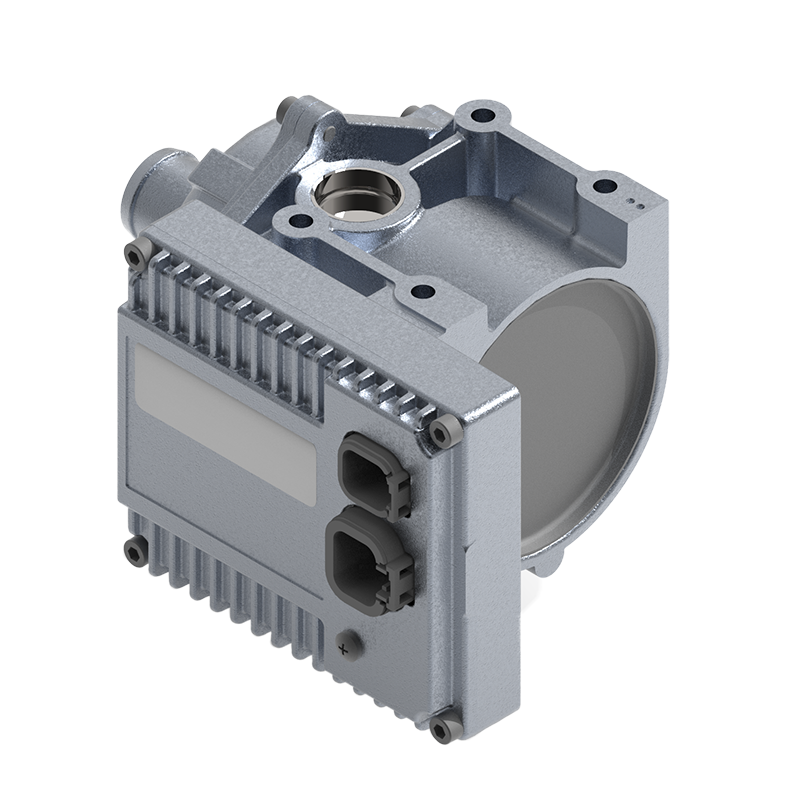

Smart Flow® WP32

The Smart Flow® WP29/32 is a high performance, long life, severe duty electric water pump used in cooling systems in extreme environments. It is used in the transit bus market, off road applications, power grid battery cooling, stationary power generation and roof mounted cooling systems.

View product specification

Type	12V	24V
Flow and pressure	6 gpm @ 25 psi	6 gpm @ 25 psi
Overall Package Weight (Without Fluid)	6.4 lbs	6.4 lbs
Sealing Rating	IP6K9K	IP6K9K
Rated Voltage	9-18 VDC	18-32 VDC
Operating Temperature	-40° to 203° F	-40° to 203° F
Storage Temperature	-58° to 257° F	-58° to 257° F
Max Current	25 Amps	15 Amps
Pump Speed Range	750 – 4600 RPM	750 – 4600 RPM
Hose Connection	1 in	1 in
Control Inputs	On/Off Temp Sensor CAN J1939	On/Off Temp Sensor CAN J1939
Controller Temperature Range	-40° to 203° F	-40° to 203° F
Shaft Configuration	Carbon Steel Stainless Steel	Carbon Steel Stainless Steel
Approval Options *Available Upon Inquiry	UL* CSA E-Mark	UL* CSA E-Mark

Type	12V	24V
Flow and Pressure	23 lpm @ 170 kpa	23 lpm @ 170 kpa
Overall Package Weight (Without Fluid)	3 kg	3 kg
Sealing Rating	IP6K9K	IP6K9K
Rated Voltage	9-18 VDC	18-32 VDC
Operating Temperature	-40° to 95° C	-40° to 95° C
Storage Temperature	-50° to 125° C	-50° to 125° C
Max Current	25 Amps	15 Amps
Pump Speed Range	750 – 4600 RPM	750 – 4600 RPM
Hose Connection	24.4 mm	24.4 mm
Control Inputs	On/Off Temp Sensor CAN J1939	On/Off Temp Sensor CAN J1939
Controller Temperature Range	-40° to 95° C	-40° to 95° C
Shaft Configuration	Carbon Steel Stainless Steel	Carbon Steel Stainless Steel
Approval Options *Available Upon Inquiry	UL* CSA E-Mark	UL* CSA E-Mark

Product Features

DC Brushless Motor & Controller
Brushless permanent magnet motors are combined with EMP designed motor control electronics to provide a high-efficiency long life fan. Brushless motors have no contacting parts to wear and reduce life.

Our controller features include protections against…
- Locked rotors
- Over temperature
- Over current
- Over voltage
- Reverse battery
Custom Communication Options
Our SmartFlow technology allows our line of components to communicate in a variety of styles to meet customer needs.
- J1939 CAN
- On/Off
- Contact us about control customizations
Full Variable Speed Control

Using SAE J1939-15 CAN, pumps can be operated anywhere between the pre-configured minimum and maximum speeds. This allows the user to optimize speed to minimize power consumption or change speed to optimize the performance of the overall system. It can also operate as a single speed ON/OFF pump that delivers continuous output set by the customer requirements.
Sealed and Fully Submersible

EMP pumps are sealed and fully submersible for long life operation when exposed to the elements. Pumps are validated to withstand submersion and direct pressure wash.
Temperature Inputs

EMP electric water pumps have the ability to read external temperature sensors and control speed based on this input. They are also able to broadcast temperatures to the vehicle via SAE J1939 CAN.
High Efficiency, Compact, Quiet

The motor, electronics, and fluid design have been optimized for high efficiency. The end result is the highest possible flow and pressure for a given amount of input power. The design is also packaged to have as small a footprint as possible for the given pump performance and minimize sound output.
Validated for Severe Conditions

EMP water pumps are validated to withstand all field conditions including thermal cycles, salt spray, pressure wash, thermal shock, vibration and shock, electrical transients, ESD, reverse battery and more. Durability testing has surpassed 23,000 hours of continuous operation at maximum speed and operating temperature.
Field Proven Long Life

EMP has been producing the brushless electric water pumps since 2006. They have achieved in excess of 30,000 hours of life in demanding continuous applications.
